Choke Actuator

$ 95

Availability: 18 in stock SKU: CLA-30 Category: Servos and Actuators

Add to Wishlist

Description
Additional information

Description

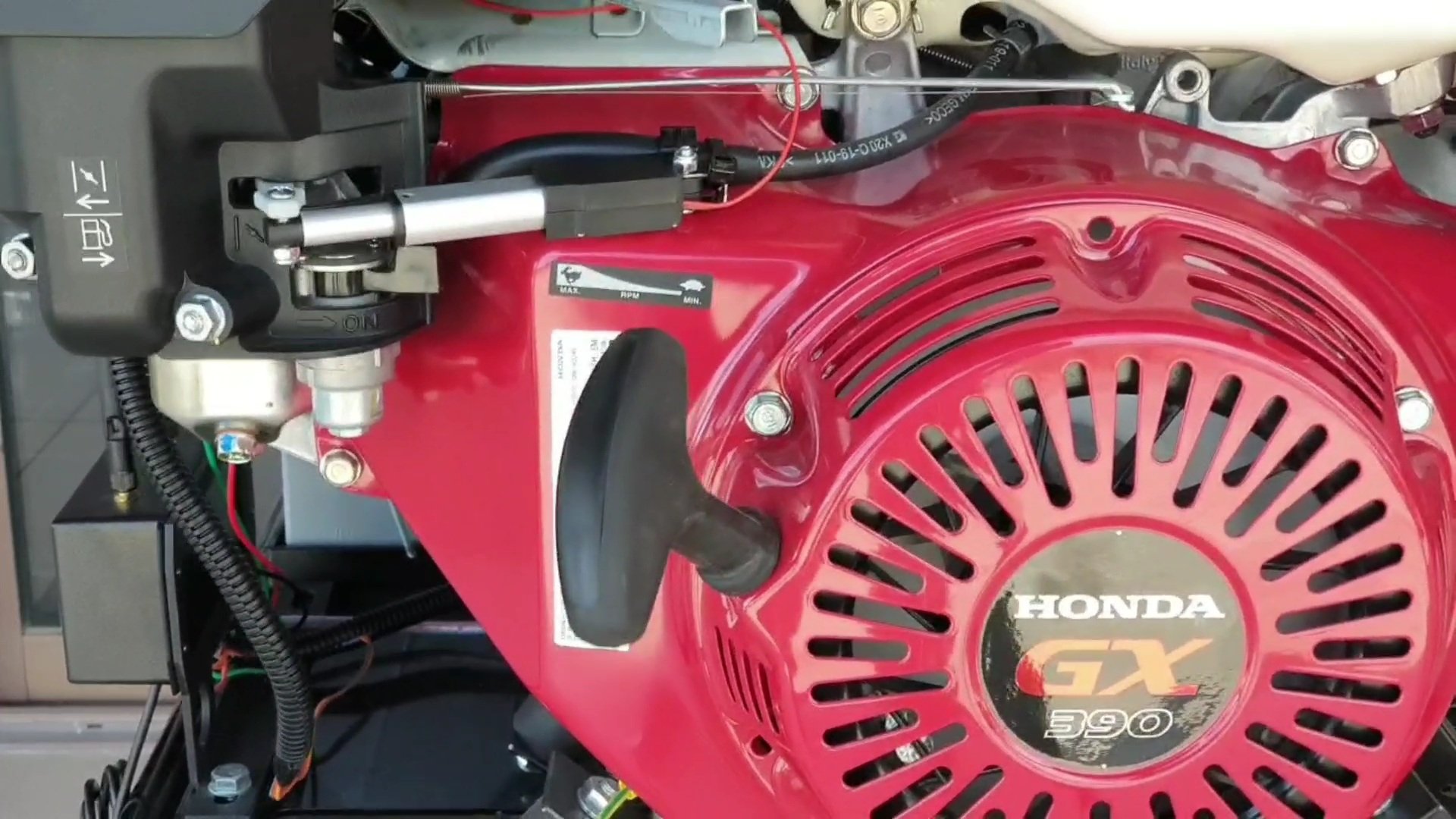

This actuator can be used to operate a manual choke lever during engine startup.

Can also be used on diesel engines requiring fuel cutoff during shutdown or with decompression levers.

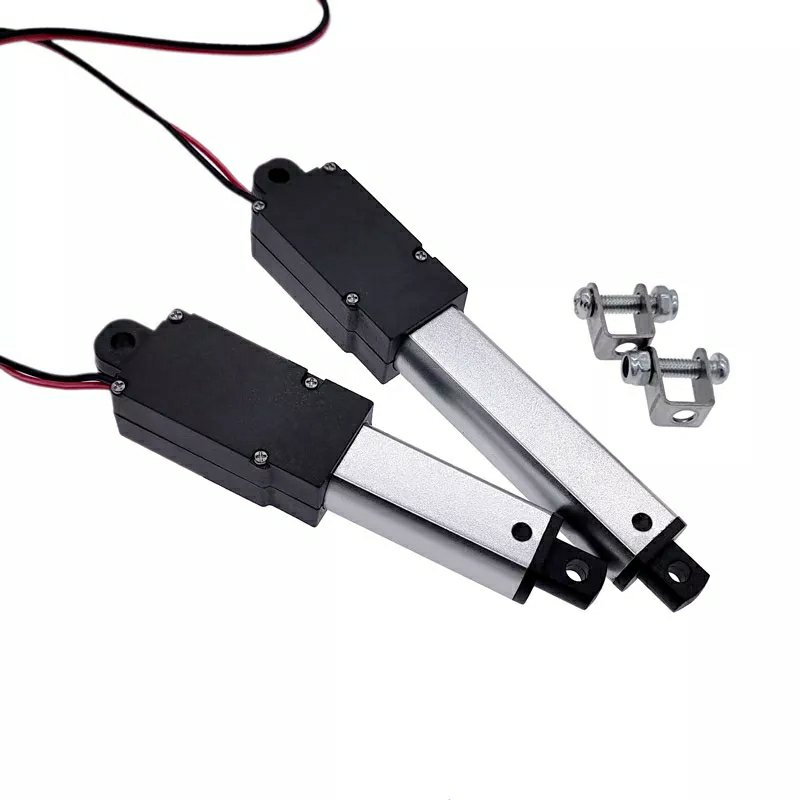

Very easy to install. Comes prewired with a DPDT 12v relay and 2 swivel brackets.

Compatible with all AutoGen controllers. Easier to install than our choke servo and servo bracket.

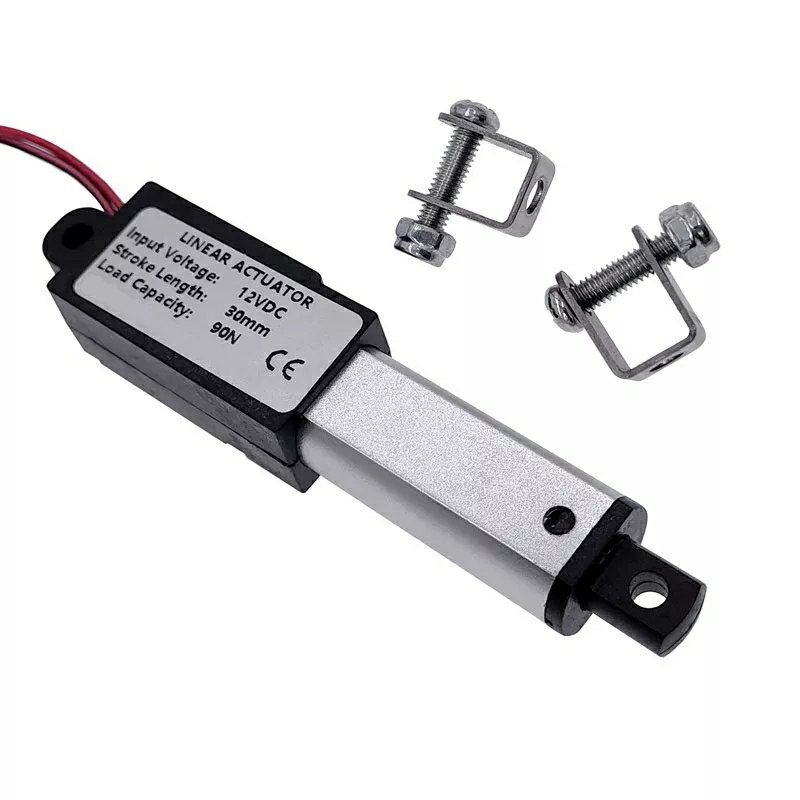

Stroke travel is 30mm. Perfect length for the majority of gasoline engine generators with a manual lever.

Prewired with red to +12vdc, black to ground and green to trigger.

Below is the wiring diagram for your reference.

V6_V7 AutoGen with Choke Linear Actuator Wiring Diagram

Check out the video below to see the actuator in action.

Additional information

Weight	0.1 kg

A Great Solution

This was a great solution to the problem I was having. I built a go kart for my twin 10 year old grandsons and I did not want them to deal with the choke when they wanted to ride it. Now they get in, buckle up their four-point harness, turn the switch to on, press the start button and go. Glad I stumbled onto your YouTube video when I was searching for a solution to always having to set the choke even when the engine was warm.

V6 autogen

I am shure the product works fine, but i never got it working, disappointed in the packaging with absolutely NO instructions!??? The price you pay for this , it would be appreciated to have nice instructions and in a box and not a bubble wrap bag. And was missing my choke servo bracket.

Choke Servo 1

The servos have worked well. These are used on a gas fired compressor with a Honda GX390 engine. The are in the heat of New Mexico and we have had no issues.
